MATERIAL

• Extruded aluminum

• Corner piece, die cast aluminum

• Covers, and trim extrusions, zinc-plated sheet steel, powder-coated texture

• Multifunctional braces and 19" extrusions, sheet steel, zinc-plated

LOAD RATING

500KG

FOR INSTALLING

• 19" components on the front and rear

• Installation accessories

COLOR

• Visible surface of covers, RAL 7035 light grey

SUPPLY SCHEDULE

1 basic rack

4 19" sheet steel angular extrusions with mounting holes

2 multifunctional braces for cable clamping and universal mounting options

1 top cover, closed

1 rear panel with quick connectors

2 side panels with quick connectors

2 horizontal trim extrusions, front

2 vertical trim extrusions, front

4 leveling feet (0-25mm)

HOW SUPPLIED

• Assembled or disassembled

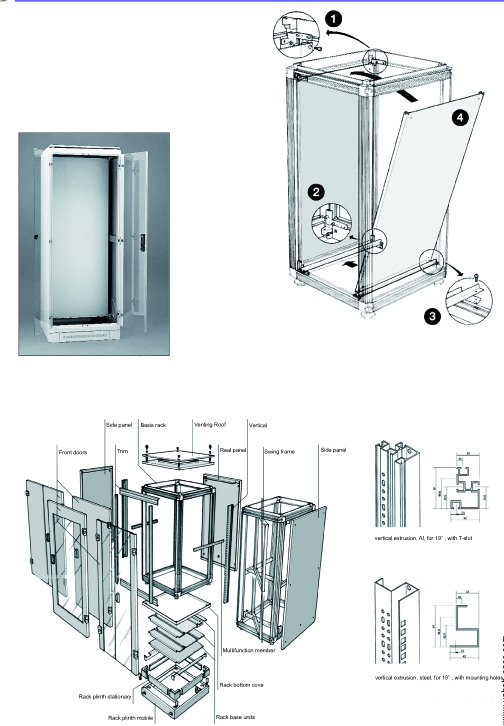

SCREW CONSTRUCTION

Dismantling the rack guarantees easy accessibility, even to the most restricted areas.

ALUMINUM CONSTRUCTION

Proven technology based on aluminum extrusion offers high flexibility and stability with low weight. The T-slot system in the frame guarantees freely selectable arrangement of accessories.

With fixed 19" installation on the front and rear

Installation of chassis runners and 19" shelves possible

For components in acc. With IEC
