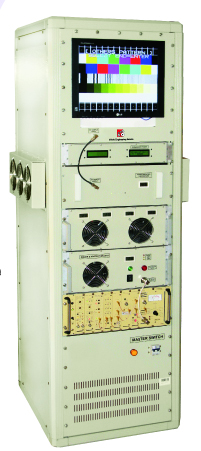

HEAVY DUTY RACK

Increased stability compared with the classic HD rack for static loads of 1500 kg and more.

Use of newly designed more stable extrusions and new. Heavier duty-corner piece.

MATERIAL

• Extruded aluminum

• Corner piece, die-cast aluminum

• Covers, zinc-plated sheet steel, powder-coated texture

LOAD RATING

1500kg

FOR INSTALLING

• 19" components on the front and rear

• Installation accessories

COLOR

• Visible surface of covers, RAL 7023

SUPPLY SCHEDULE

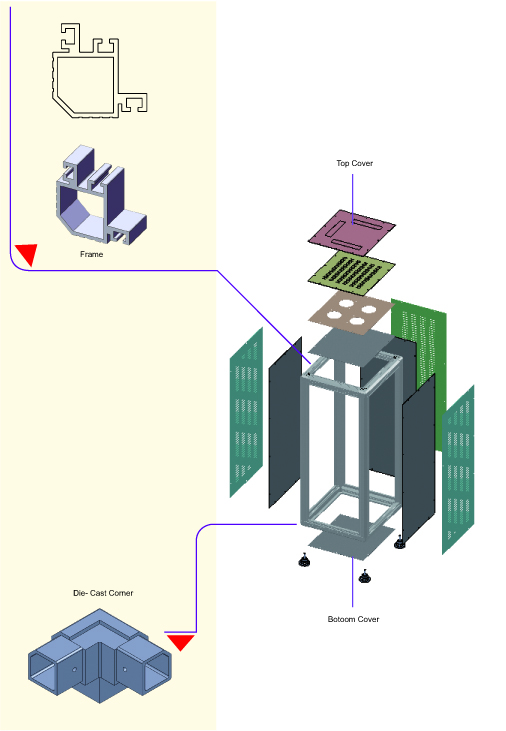

1 basic rack

1 top cover, closed

1 rear panel with quick connectors or screw

2 side panels with quick connectors or screw

2 horizontal trim, front

4 leveling feet (0-25mm)

HOW SUPPLIED

• Assembled or disassembled

SCREW CONSTRUCTION

Dismantling the rack guarantees easy accessibility, even to the most restricted areas.

ALUMINUM CONSTRUCTION

Proven technology based on aluminum extrusion offers high flexibility and stability with low weight. The T-slot system in the frame guarantees freely selectable arrangement of accessories.

With fixed 19" installation on the front and rear

Installation of chassis runners and 19" shelves possible

For component in acc. With IEC 297
