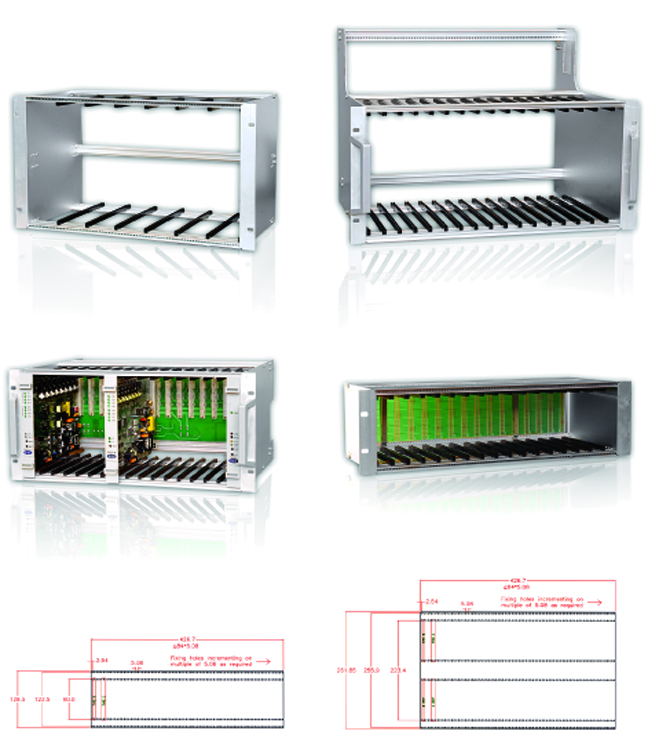

MOUNTING DIMENSION

  • The subrack system is fully compatible with IEC 297 section 3

  • All plug-in units are modular in concept and based on the first card position being 3.27 from the left hand datum line of working aperture; subsequent card positions are on multiples of 5.08 mm (1HP) from the first card position

  • To allow for a uniform working clearance between front panels the physical overall width of front panels is 0.4 mm less than the nominal HP x 5.08 mm dimensions quoted

  • The system is designed to accommodate indirect connector manufactured to the IEC 130-4 , DIN 41612, and VG 95324
